Create an environment with custom packages installed

If you’d like a set of custom packages to be installed and ready to go when you (or anyone else) launches a session in your project, you can take advantage of Renku’s code based environments.

With Renku code based environments, you can point Renku to a code repository that contains an environment definition file, such as an environment.yml, requirements.txt, pyproject.toml, or renv.lock, and Renku will build a custom environment for your session for you!

This guide has 2 parts:

• First, we will walk through what kinds of files you can use to define code based environments in Renku.
• Second, we’ll show you how to create a code-based environment for your project.

What kinds of environment definitions are supported?

RenkuLab’s code-based environments currently support creating Python and R environments.

Defining a Python Environment

There are multiple ways you can define a python environment for your Renku session:

• Miniconda (environment.yml) (recommended)
• Pip (requirements.txt)
• Poetry (pyproject.toml)

See below for more details on how to use each of these systems.

info

If you’d like to learn more about the system Renku uses to create python environments, check out Paketo Buildpacks.

Miniconda (environment.yml) (recommended)

Include an environment.yml file located at the root (top level) of the code repository.

Here’s an example environment.yml:

# Note: name can be changed
name: "base"
channels:
	# important: do not use 'defaults', but always include 'nodedefaults'
  - conda-forge
  - nodefaults
dependencies:
  - python=3.9 # set your python version here
  - tensorflow-gpu
  - numba
  - scikit-learn
  - pandas
  - seaborn
  - matplotlib
  - jupyterlab
  - xarray
  - pip
  - pip:
	  # put packages to be installed by pip here
    - deepsmiles
    - rdkit
# Note: prefix can be changed
prefix: "/opt/conda"

Important usage notes:

• Regarding the Python version: specify your Python version with = and not ==! Using == will result in the lowest version being used, without bug fixes and security updates, e.g. using python==3.10 will install 3.10.0 while using python=3.10 will install 3.10.19 or a newer release. You can also use a version string similar to python>=3.12,<3.13 (will install latest 3.12.x).
• Regarding conda channels:
  • nodefaults must be included. See example above.
  • We recommend using the conda-forge channel or other non-anaconda channels.
  • The defaults channel is not recommended and often results in failed builds (due to rate limits imposed by Anaconda).
• Please note that miniconda can only be used at this time to create Python environments, not R environments.
• Environments defined with one of these files will be created via miniconda. Configuring a version of miniconda is not supported.

Pip (requirements.txt)

Include a valid requirements.txt file at the root (top level) of your code repository. Renku will create an environment from this file using pip.

info

Defining a python environment via a requirements.txt file will create a python environment with python version 3.10. It is not currently possible to specify a different python version.

Here is an example requirements.txt:

numpy==2.2.2
pandas==2.2.3
jupyterlab==4.3.5

Poetry (pyproject.toml)

Including a pyproject.toml file at the root of your code repository triggers the poetry installation process. The buildpack will invoke poetry to install the application dependencies defined in pyproject.toml and set up a virtual environment.

Note that poetry version 1.8.3 will be used.

Here is an example pyproject.toml:

[tool.poetry]
name = "python-poetry-1"
version = "0.1.0"
description = ""
authors = ["Flora Thiebaut <flora.thiebaut@sdsc.ethz.ch>"]
readme = "README.md"
# Important: use `package-mode = false` if the repository
# is not an installable package.
package-mode = false

[tool.poetry.dependencies]
python = "^3.12"
numpy = "^2.2.2"
pandas = "^2.2.3"
jupyterlab = "^4.3.5"
scipy = "^1.15.1"
torch = "^2.6.0"
pytorch-lightning = "^2.5.0.post0"

[build-system]
requires = ["poetry-core"]
build-backend = "poetry.core.masonry.api"

Defining an R Environment with renv

Renku can build an R environment from an renv lockfile. renv records the R packages used by your project in renv.lock; Renku uses this lockfile to restore those packages when building the session image.

To use renv with a code-based environment:

1. In your R project, install and initialize renv if you have not already done so:

   install.packages("renv")
   renv::init()

2. Install the packages your project needs as usual, for example:

   install.packages(c("dplyr", "ggplot2"))

3. Write your analysis code that uses those packages.

4. Snapshot the environment to update the lockfile:

   renv::snapshot()

   warning

   The renv::snapshot() command will pick up only the packages that are installed and used in your source code. If you install packages but do not use them (yet) they will not be added by default.

5. Commit renv.lock at the root (top level) of the code repository. You should also commit the files created by renv that are meant to be shared with the project, such as .Rprofile and renv/activate.R.

When Renku builds the image, it restores the packages recorded in renv.lock. If a package requires system libraries that are not available in the build image, the build can fail. In that case, consider using a custom Docker image instead; see How to use your own docker image for a Renku session.

How to create a code-based environment for your Renku session

info

This functionality only works with public code repositories. If your code repository is private, please see Creating a custom environment from a private code repository.

1. Make sure the code repository that contains your environment definition file is added to your Renku project.

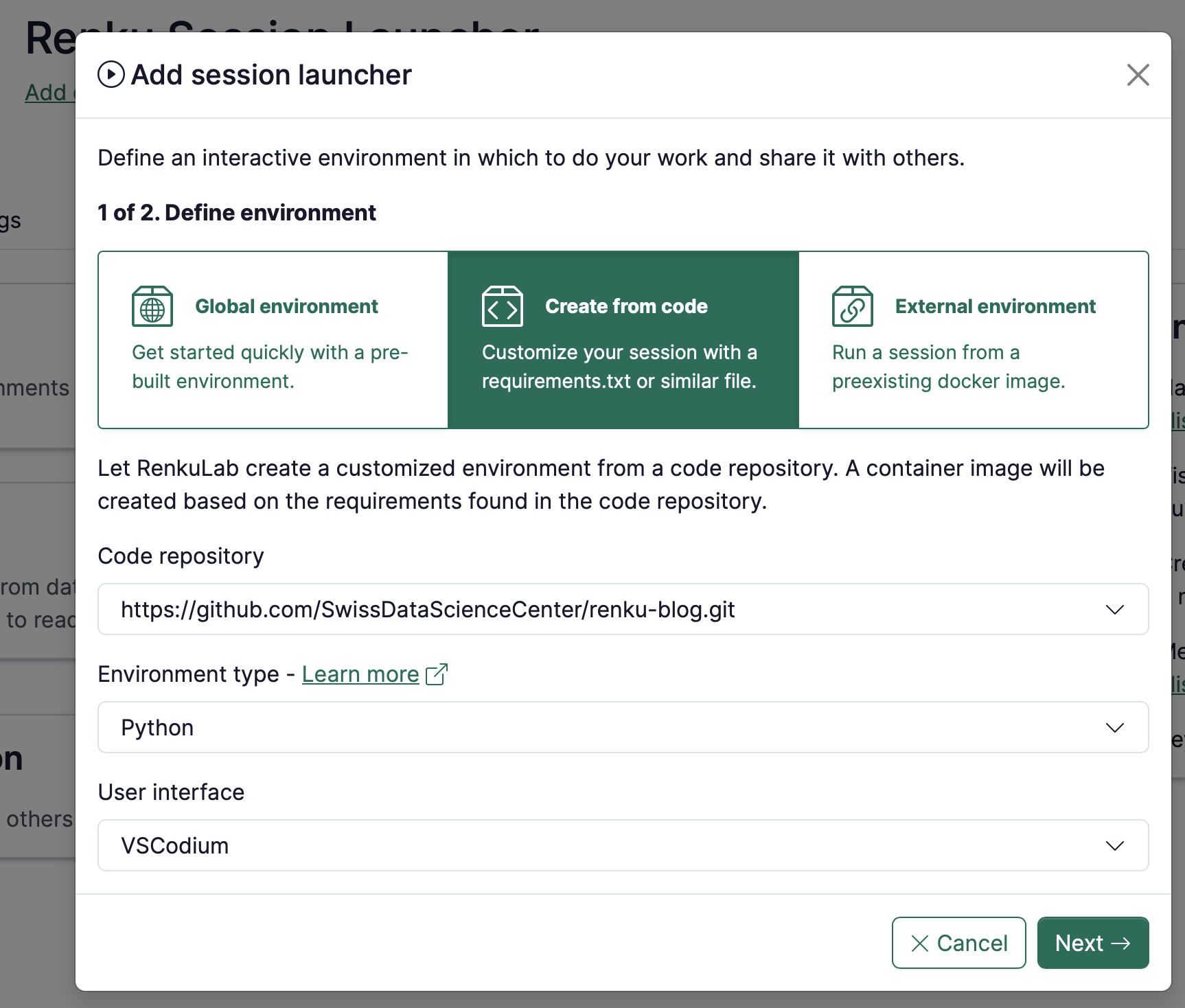

2. Create a new session launcher

3. Select the Create from code option



4. Select the Code repository

   info

   Note: The code repository must be public. If your code repository is private, please see Creating a custom environment from a private code repository

   info

   Note: The code repository must be already linked to the Renku project

5. Select the Environment type. Choose Python for Python environment definition files, or R for repositories that use renv.lock.

6. Select the User interface you’d like your session to have, such as VSCodium/JupyterLab for Python environments or RStudio for R environments.

7. Click Next

8. Define the name of the Session Launcher

9. Select the default compute resources

10. Click on Add session launcher

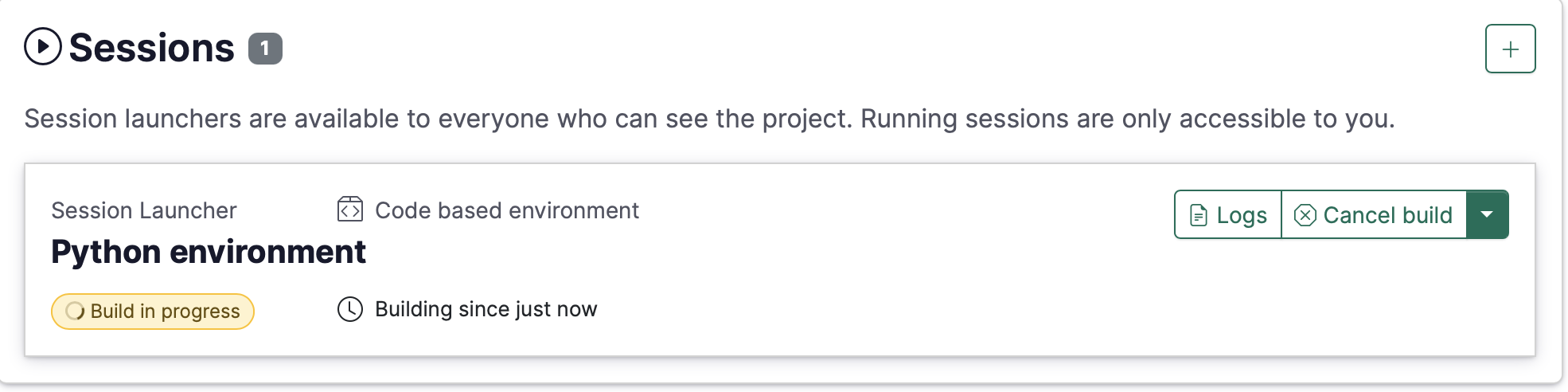

The environment is now being built by RenkuLab. You can see the status on the session launcher.

When the environment is built, you can launch your session.

Updating a code-based environment

1. When you want to make changes to your environment (add new packages), first update the environment definition file in the code repository where the environment is defined.
2. Then, rebuild the environment in RenkuLab:
   1. Click on the session launcher to open the session launcher side panel.
   2. Navigate to the Session Environment section.
   3. Click on Rebuild.

[experimental] Using a dashboard with a code-based environment

warning

Temporary and experimental! The description below is a current work-around but we will streamline this workflow in the near future!

Your project might have a nice dashboard inside, which you would want others to see. If your repository’s requirements include a dashboard tool (e.g. streamlit or plotly dash), it is relatively simple to have Renku build the image, and convert it to show the dashboard instead of VSCodium. This way, you can have, for example, one launcher for development that you use and another to show others the results.

To set up a dashboard with an environment built from your repository, you can follow these steps:

1. Follow the steps for creating a code-based environment above.
2. Once the image is done building, edit the environment and change it to a “Custom Environment”
3. Edit the Command to be ["bash", "-c"] and Args to correspond to your app - see common examples here.

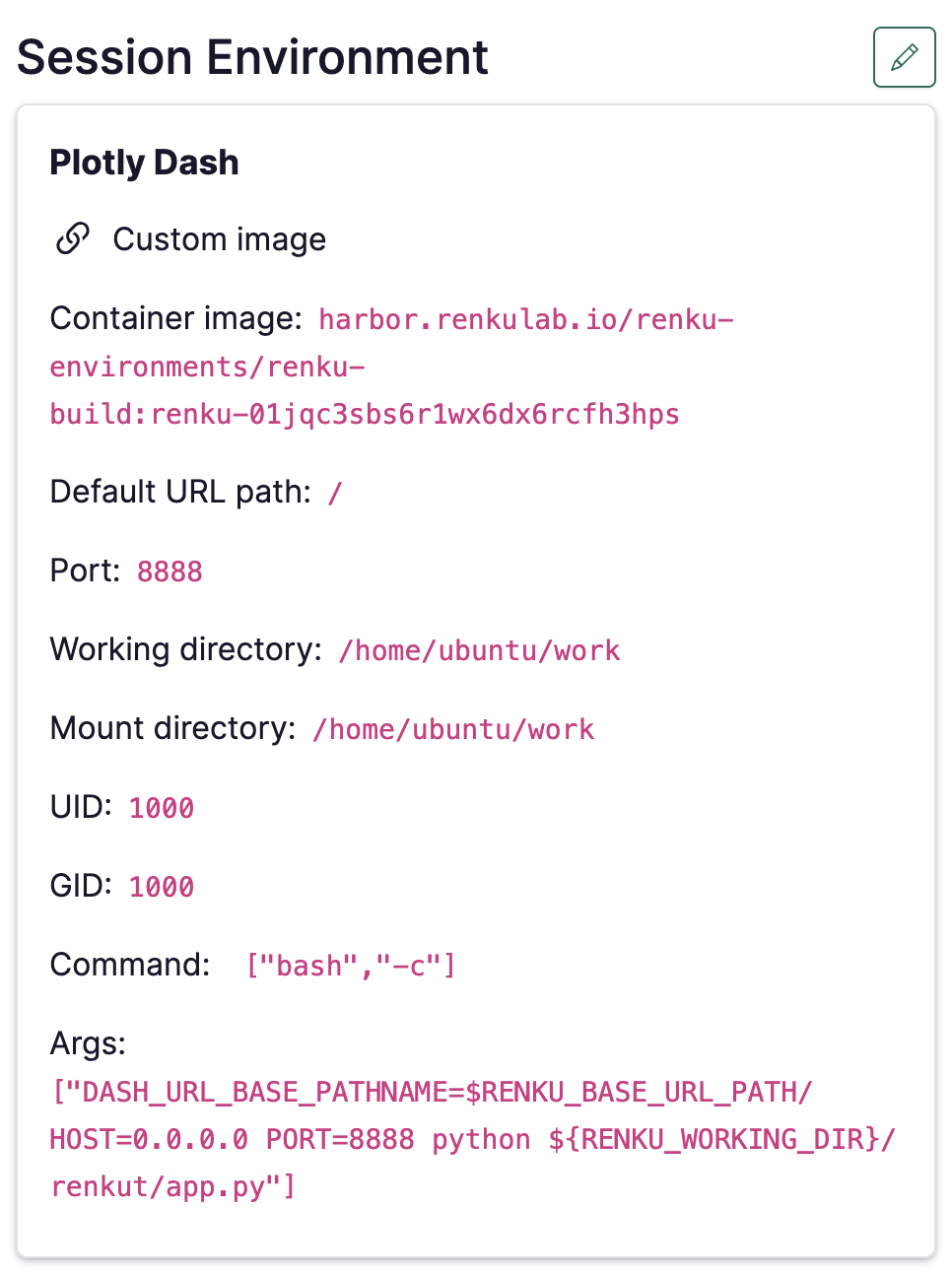

Once you are done, your environment configuration should look something like this:

And your launcher set up could be, for example:

Creating a code-based environment from a private code repository

Please see Creating a custom environment from a private code repository.
